SSOP18
In developing your designs, please ensure the datasheet.
| Mounting | Surface Mount | |
|---|---|---|
| Pins | 18 | |
| Package Dimensions (mm) / Land pattern dimensions for reference only (mm) |

|
|

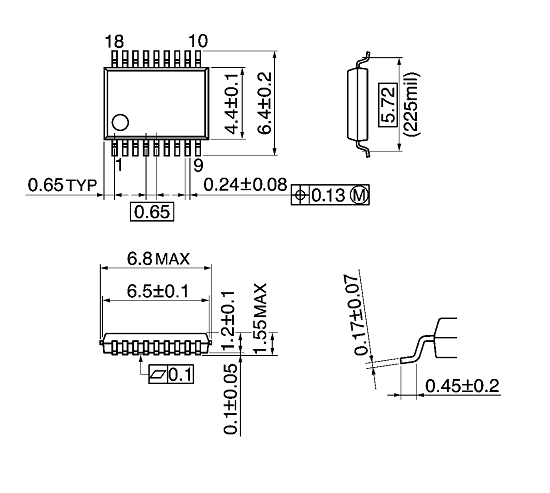

| Package | SSOP18-P-225-0.65 | |

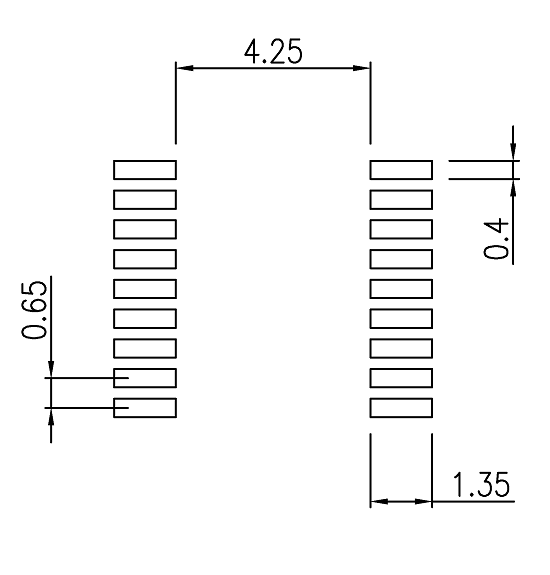

| Land pattern | SSOP18-P-225-0.65_LP | |
| Thermal resistance (℃/W) | - | |
| Packing Method | - | |
| Semiconductor Package Mount Manual |
MountingGuide | |
