SOP24
In developing your designs, please ensure the datasheet.
| Mounting | Surface Mount | |
|---|---|---|
| Pins | 24 | |

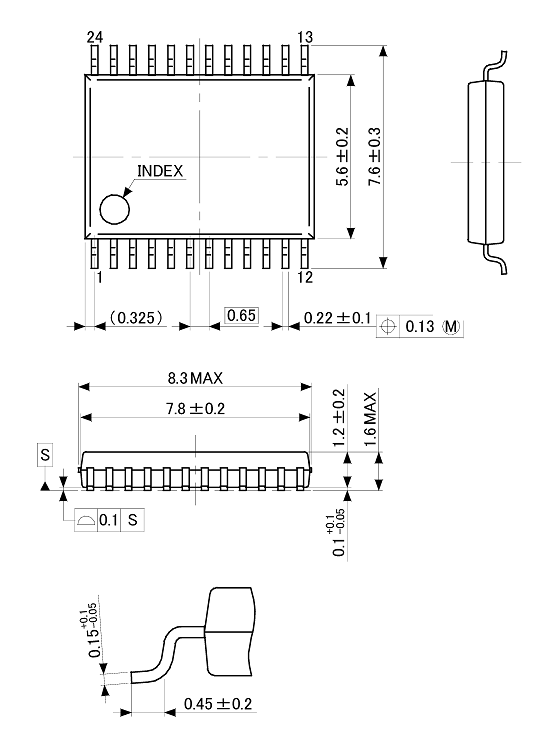

| Package Dimensions (mm) / Land pattern dimensions for reference only (mm) |

|
|
| Package | SSOP24-P-300-0.65A | |

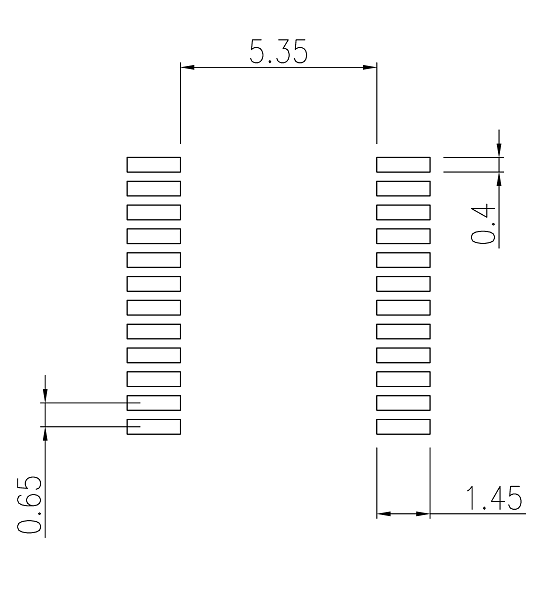

| Land pattern | SSOP24-P-300-0.65A_LP | |
| Thermal resistance (℃/W) | 73.1 | |
| Packing Method | Embossed Tape | |
| Minimum Quantity | 2000 pcs/Reel | |
| Tape Width (mm) | - | |

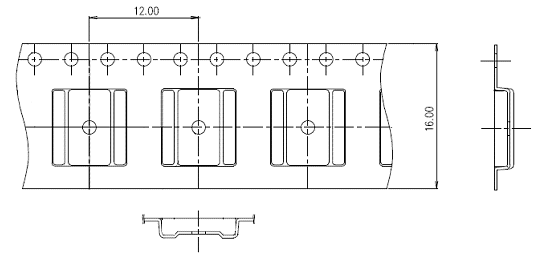

| Tape Dimensions (mm) |
|
|
| Semiconductor Package Mount Manual |
MountingGuide | |
